Plastic pipe cutting machine is mainly used with plastics extruder, is suitable for plastic pipe material, special-shaped material, soft pipe and plastic products of automatic production line, the suitable range, easy to use, is the special equipment simultaneously traction and cutting.
Second, the structure and working principle:
Put the machine center in extruder, vacuum calibrating the centerline of the line box, can adjust the foot bolt.
Adjust the traction device traction tracks relative speed with plastic extruder, get different wall thickness of pipe. When met the requirement of the pipe length, cutting device in tuned automatically cut program.

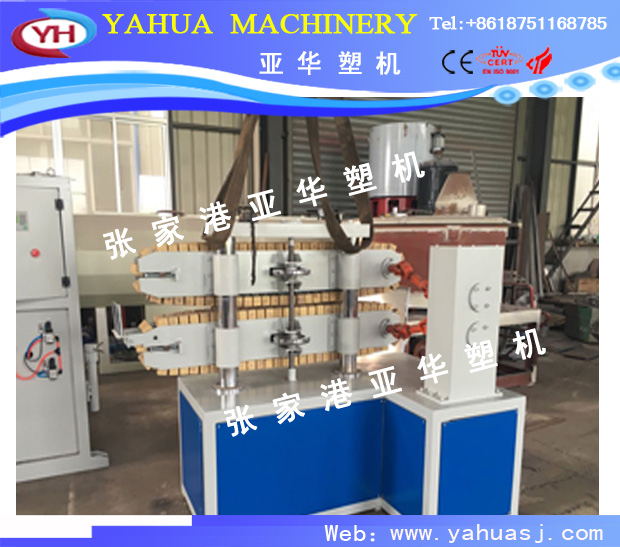

2.1, traction device

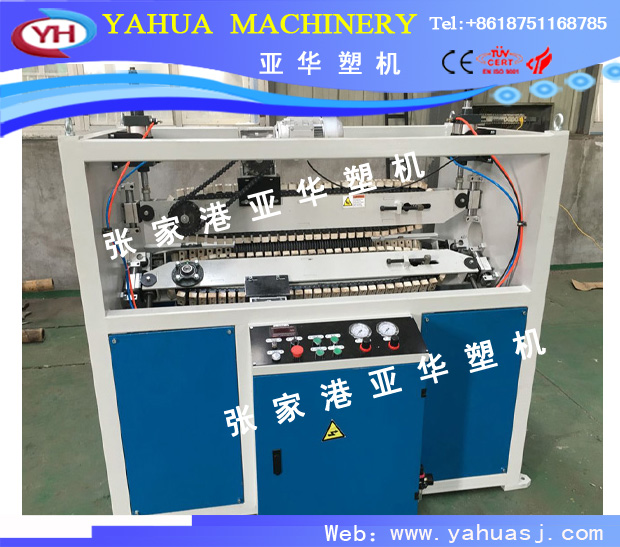

Traction device is mainly composed of frame, traction mechanism, transmission system and traction tracks lifting mechanism, etc. Traction frame composed of steel welding for traction mechanism and drive system was laid.

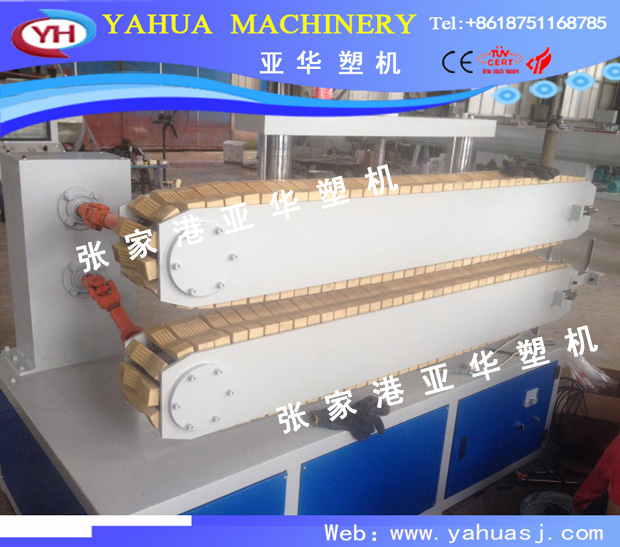

Traction mechanism: rubber chain type plastic tubing skeleton traction mechanism by drawing the main, driven wheel, chain and rubber block, etc.

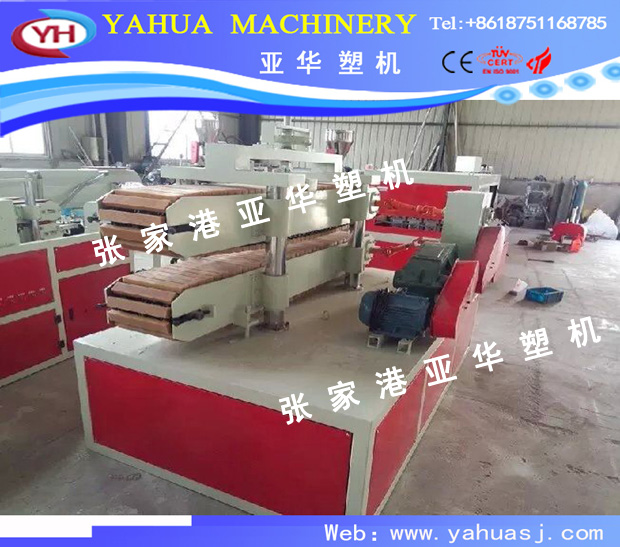

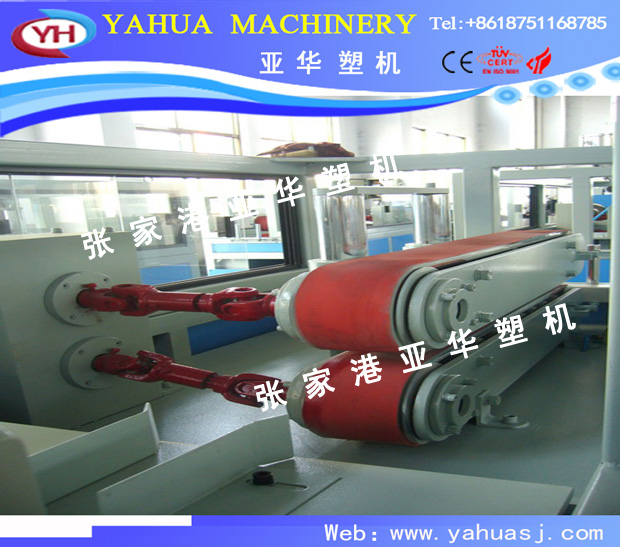

The power transmission system is to make the traction institutions, is made up of two reduction motor respectively through the spindle to transmit power directly to the drive sprocket.

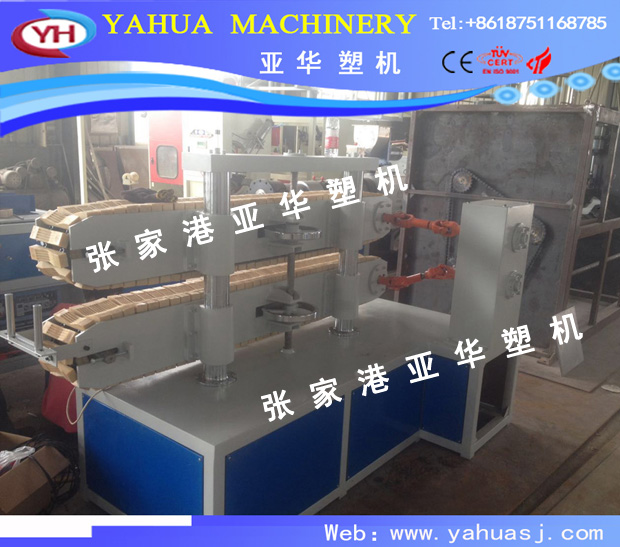

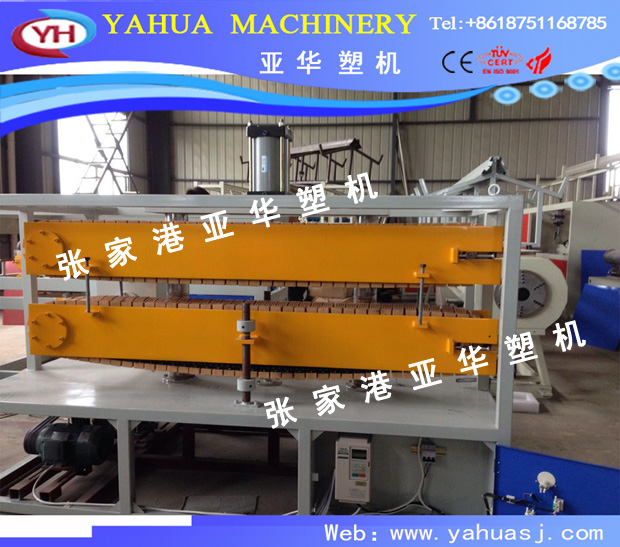

Drawing track lifting mechanism, the rise and fall of shelves is driven by cylinder, adjusting screw lift is available from the shelves. Can produce according to the diameter of the pipe size and the size of the required traction adjusted easily.
